IES and Dublin City Council team up for digital twin retrofit project

by Liam Turner

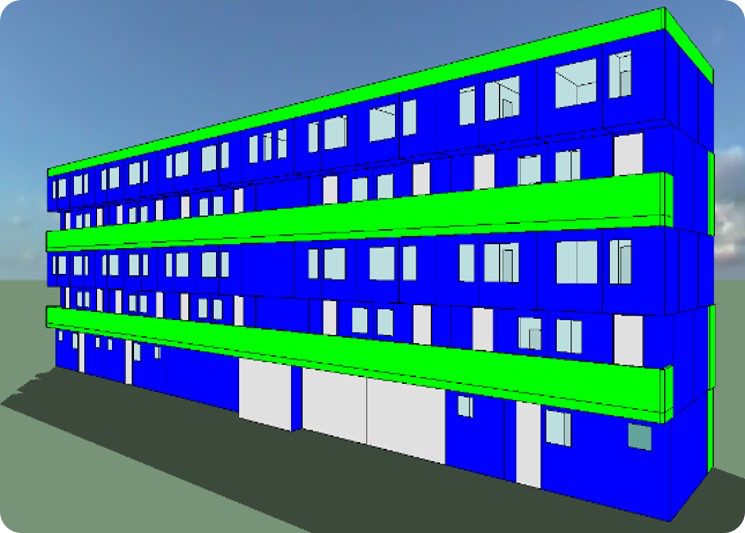

A digital twin of a social housing block on Lower Dominick Street, Dublin

IES (Integrated Environmental Solutions) has developed a digital twin of a social housing block in Dublin and assessed the whole-life carbon impact of different retrofit strategies over different time periods.

Using digital twin technology, IES carried out modelling of three residential blocks located on Lower Dominick Street, Dublin.

It assessed the full carbon impact and efficiency of four renovation strategies, over three different time periods, to regenerate the vacant buildings, which were originally built in 1962.

The strategies align with the council’s climate targets for 2030, 2050, and beyond.

Whole-life carbon approach

The project took a whole-life carbon approach, taking into account both embodied and operational carbon.

Embodied carbon refers to the emissions generated via construction and materials throughout the whole lifecycle of a building; while operational carbon refers to the emissions generated during the operational or in-use phase of a building.

The digital twin models were used to identify which strategy, from shallow retrofit to demolition and rebuild, would result in the biggest reduction in whole-life carbon emissions.

In order to determine the strategy that would lower emissions most significantly, the main sources of energy consumption were identified by calibrating data from existing energy bills of the social housing site.

The strategies were as follows:

  • Strategy 1: Shallow Retrofit (the implementation of 1 or 2 measures resulting in a reduction in energy consumption of between 0% and 30%)
  • Strategy 2: Medium Retrofit (3-6 improvements with a reduction of 30% -60%)
  • Strategy 3: Deep retrofit (a package of measures working together leading to an energy reduction of 60% – 90%)
  • Strategy 4: Reduce to Core & Shell and Rebuild (leaving in place structural elements and upgrade of all other elements which have a bearing on energy use, as well as the installation of renewable technologies in order to reduce energy and CO2 levels to close to zero)

Each strategy consisted of a package of energy-efficiency measures.

IES’ core Virtual Environment (VE) software was used to understand the impact on energy usage and operational carbon of each measure through dynamic, physics-based simulations.

This allowed them to understand which strategy would bring the biggest reduction in operational emissions, which was Strategy 4 and “as expected,” according to IES.

In order to understand the whole-life cycle impact of the interventions, the integration between the VE and OneClickLCA was used to calculate the embodied carbon associated with each intervention.

Once this was added to the operational emissions, and estimated at different life periods (20, 40, and 60 years), Strategy 3 outperformed Strategy 4 due to the high embodied carbon associated with a full renovation.

Strategy 3 (Deep Retrofit) was hence selected as the best option to optimise the whole-life carbon of the building over all life-cycle periods assessed.

The full results are included in the Dublin City Council Climate Resilient Housing Report, which highlights that, over a 60-year life period, each residential block can achieve around an 85% reduction in cumulative emissions by carrying out a deep retrofit.

As a result of the study, IES says that Dublin City Council can now make evidence-backed decisions when developing the most optimal whole-life carbon regeneration strategy for the refurbishment of ageing social housing buildings.

‘Importance of retrofitting’

Dublin City Council says the results of the project will help it to meet emissions reduction targets, retrofitting targets for social housing, and housing delivery targets.

Sabrina Dekker, Climate Change co-ordinator, Dublin City Council, said: “This project has demonstrated the results that can be achieved through working collaboratively, exchanging knowledge to drive innovation and meet targets.

“IES’s digital twin technology has enabled us to confirm the importance of retrofitting to reduce our emissions, and we hope that the results can be utilised to inform future projects.”

The project was funded by the Department of Public Expenditure and Reform’s Public Sector Innovation Fund, with IES and DCC in partnership winning the contract to create the digital twin.

Image: A digital twin of a social housing block on Lower Dominick Street, Dublin. Credit: IES
